SL TWIN
- Description
Description

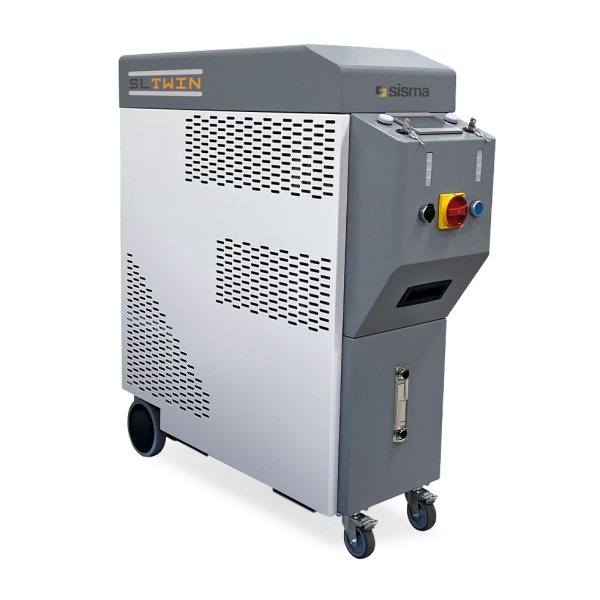

SL TWIN
DUAL PULSED LASER SOURCE
SL TWIN is a laser system for automated welding designed for harsh environments and demanding applications, and characterised by exceptional versatility.
The laser source inside is equipped with two resonators, which allow the system to emit two separate and independent laser beams. This makes it possible to operate two machines simultaneously, or to perform two independent welds on the same work area.
The system architecture, tropicalysed and equipped with an enhanced cooling system, allows it to be used even under severe and prolonged conditions.
The optional Cruise Control system ensures pulse energy stability in all conditions, guaranteeing process repeatability.
| Laser | Nd:YAG (flash lamp) – 1064 nm |
| Average power | 80 W (overall) |
| Pulse peak power | 7,5 kW + 7,5 kW |
| Max pulse energy | 175 J + 175 J |
| Pulse frequency | 0 ÷ 50 Hz |
| Pulse duration | 0,3 ms ÷ 25 ms |
| Cooling system | Water/air (enhanced) |
| Power supply | 230 V 50/60Hz 1ph – 2,8 kW |
| Dimensions (L × W × H) | 362 mm × 999 mm × 1025 mm |
| Weight | 130 kg |
