Description

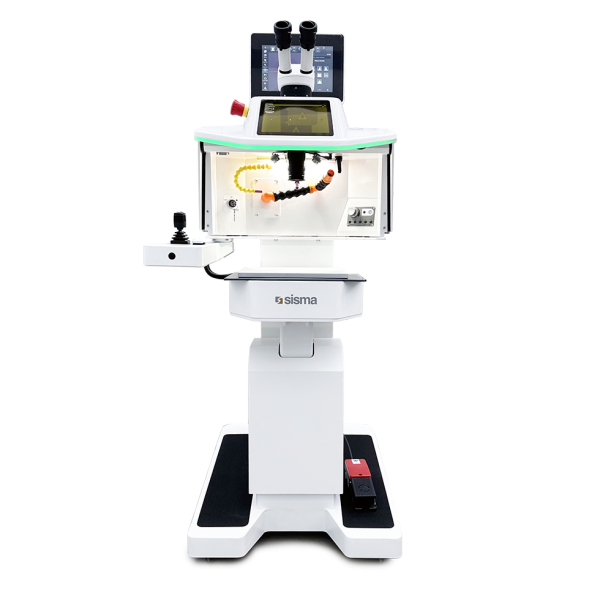

LM-B/LM-C
AUTOMATIC AND SEMIAUTOMATIC LASER WELDING SYSTEM
LM-B and LM-C are semi-automatic and automatic laser systems for welding small objects, for example in the medical or jewelry sectors (LM-C), and for repairing molds.
Comfortable and silent, they are equipped with Nd: YA (Flash lamp) lasers that offer a wide depth of field and stable firing from the very first pulses, for consistent welding quality (Smart Spot technology).
| Technical Data – Dati Tecnici | LM-C | LM-C |
| 180 | 210 | |
| Source type – Sorgente laser | Nd: YAG (flash lamp) | |
| Wavelength – Lunghezza d’onda | 1064 nm | |
| Average laser power – Potenza media laser | 80 W | 85 W |
| Peack power – Potenza di picco | 9 kW | 10,5 kW |
| Energy at max pulse duration – Energia a max durata impulso | 180 J (at 25 ms) | 210 J (at 25 ms) |
| Pulse duration – Durata impulso | 0,3 -25 ms | |
| Pulse frequency – Frequenza impulso | 0 – 50 Hz | |
| Laser spot diameter – Diametro spot laser | 0,2 – 2 mm (0,1 mm optional) | |
| Power supply – Alimentazione | 230 V 50/60 Hz 1ph | |
| Max piece size – Dimensione max pezzo | 300 x 300 x h 270 mm | |
| Max load weight – Carico massimo | 25 kg | |
| X axes stroke – Corsa asse X | 150 mm | |
| Y axes stroke – Corsa asse Y | 150 mm | |
| Z axis stroke – Corsa asse Z | 175 mm | |
| Machine dimensions – Dimensioni macchina | LM-B: 698 x 801 x h 1465* mm | |
| LM-C: 1136 x 801 x h 1465* mm | ||
| Machine weight – Peso macchina | 200 kg | |
