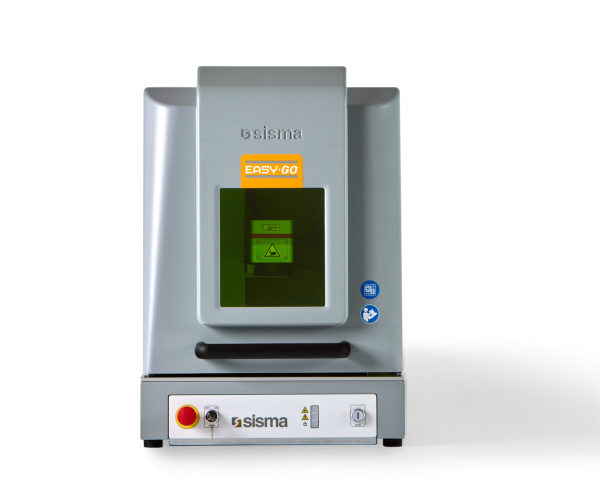

EASY GO

DESKTOP LASER MARKING AND ENGRAVING SYSTEM

EASY GO is an itterbium fibre laser marking and engraving system. It features a coaxial vision system for more precise positioning of machining operations on workpieces. Despite its compact size, this desktop laser marking system features a 400 x 200 mm working plane and is equipped with a 350 mm motorized Z axis. It can be positioned on any workbench, or on a special base, in assembly area or laboratory. Available in open version (Class IV), too.



TECHNICAL DATA EASY – GO 200F EASY – GO 300F
Active material Yb Yb
Average power 20 W 30 W
Wave length 1064 – 1085 nm 1064 – 1085 nm
Working frequency 20 – 60 kHz 30 – 60 kHz
Impulse duration < 120 ns < 120 ns
Peak power 8,3 kW 8,3 kW
Pulse energy 1 mJ 1 mJ
Beam quality (M²) < 1,8 < 1,8
Z axes stroke 350 mm 350 mm
Z axes precision 0,05 mm 0,05 mm
Repeatability 0,02 mm 0,02 mm
Max piece weight 25 kg 25 kg
Power supply 230 V ± 15% – 50/60 Hz 1ph 230 V ± 15% – 50/60 Hz 1ph
Cooling system Air Air
Power absorption 0,8 kW 0,8 kW
Dimensions (L x D x H) 560 mm x 760mm x 770 mm (1120 mm with open door) 560 mm x 760mm x 770 mm (1120 mm with open door)
Weight 85 kg (cl. 1) 85 kg (cl. 1)
